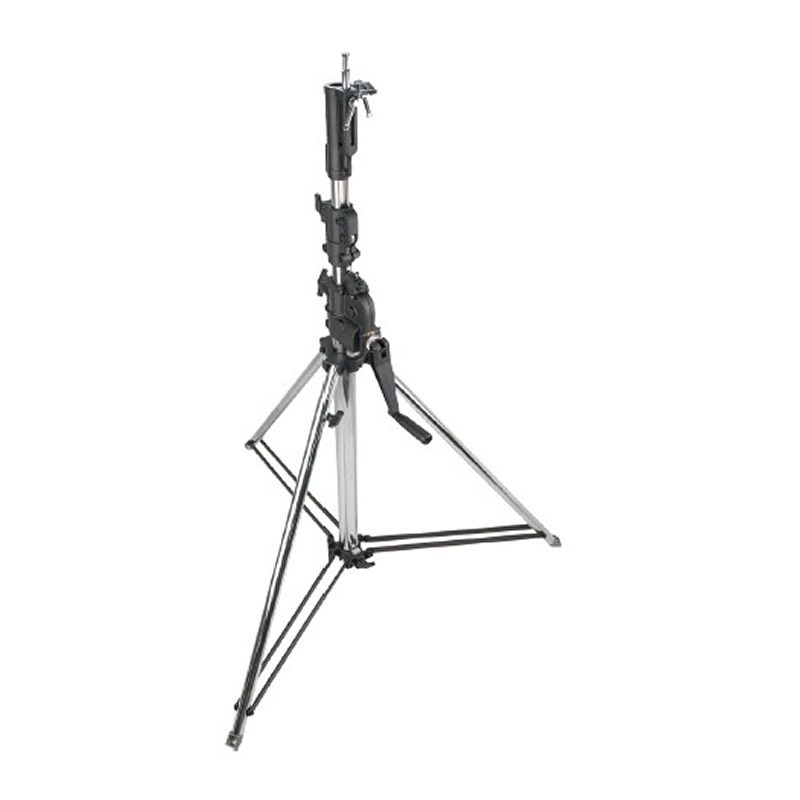

Name: Kupo 483SH | Short 3 SCT Wind-Up Stand
SKU: 483SH
Availability: InStock

Kupo 483SH | Short 3 SCT Wind-Up Stand

฿18,750.00

– 3 sections. Dia.: 55mm, 45mm, 38mm
– Leg dia.: 30mm
– 2 risers extend simultaneously at one elevation of 4.4cm per handle turn
– Safety cable ensures simultaneous retrieval of all sections.
– Chrome plated steel stand w/ geared column.
– With 1 leveling leg
– The unique automatic self-locking mechanism is equipped to prevent the light stand from dropping unexpectedly making the operation safer.

Availability: In stock

Kupo 483SH Short 3 SCT Wind-Up Stand w/ Auto Self-Locking Device

Closed Length : 152 cm
Maximum Height : 262 cm
Minimum Operating Height : 132 cm
Weight : 18.8 kg
Footprint Diameter : 128 cm
Maximum Load : 30 kg
Stand Top : Triple function universal top head with both 1-1/8″ junior receiver (29mm) and 5/8″ baby receiver (16.2mm). Extra multi-direction 5/8″ baby stud (16mm).
Suggested Caster : KC-100

Features


LOCK POSTION: The safety pin will auto insert to the holey tube when wind-up.	The stand top mounted by a steel bolt through the top tube that offers most sturdy and solid assembly.	UNLOCK POSITION The inside spring will bring the safety pin back.

The crank handle folds back for travel. It also can be placed in between tripod legs to prevent the risers from falling accidentally if the lock is unexpectedly disengaged.	The tension of brake shoe can be adjusted with Allen wrench.	Velcro is supplied for better cable management.

Top section tube can be adjusted by stepping on foot step.	By using the leveling leg the stand can be quickly leveled on uneven terrain.	Bright color warming sticker for safety operation.

Casters are optional for easily moving the stand. The stand foot is rugged zinc-casting. Dia.: 100mm with brake and M10 attachment. A set is for three (KC-100).	483-BP Base Plate Optional accessory to be used where the stand has to be secured to the floor for safety reason.	Compatible with stand models: 481, 482, 483T and 470. (set of three)
